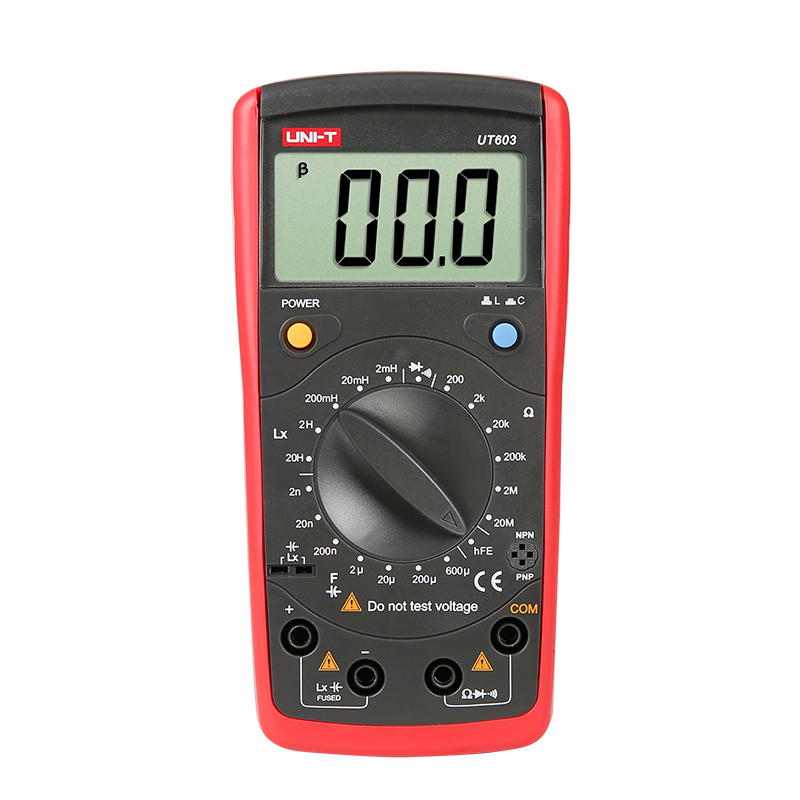

UNI-T UT 603 Digital Inductance Capacitance Meters

UT600 series digital inductance capacitance meters are used to test resistors, capacitors and inductors. They can also be used to measure transistor parameters.

Specifications Range UT601 UT603
Resistance (Ω) 20Ω/200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ/2000MΩ ±(0.8%+1)
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ ±(0.8%+1)
Capacitance (F) 200pF/2nF/20nF/200nF/2uF/20uF/200uF/2mF/20mF ±(0.5%+10)
2nF/20nF/200nF/2uF/20uF/200uF/600uF ±(1%+5)
Inductance (H) 2mH/20mH/200mH/2H/20H/200H
2mH/20mH/200mH/2H/20H  ±(2%+8)
Display count 2000 2000
Manual range
Continuity buzzer
Low battery indication
Data hold
General Characteristics
Power 9V battery (6F22)
Display 61mm x 32 mm
Product color Red and grey
Product net weight UT601/UT602: 310g, UT603: 312g
